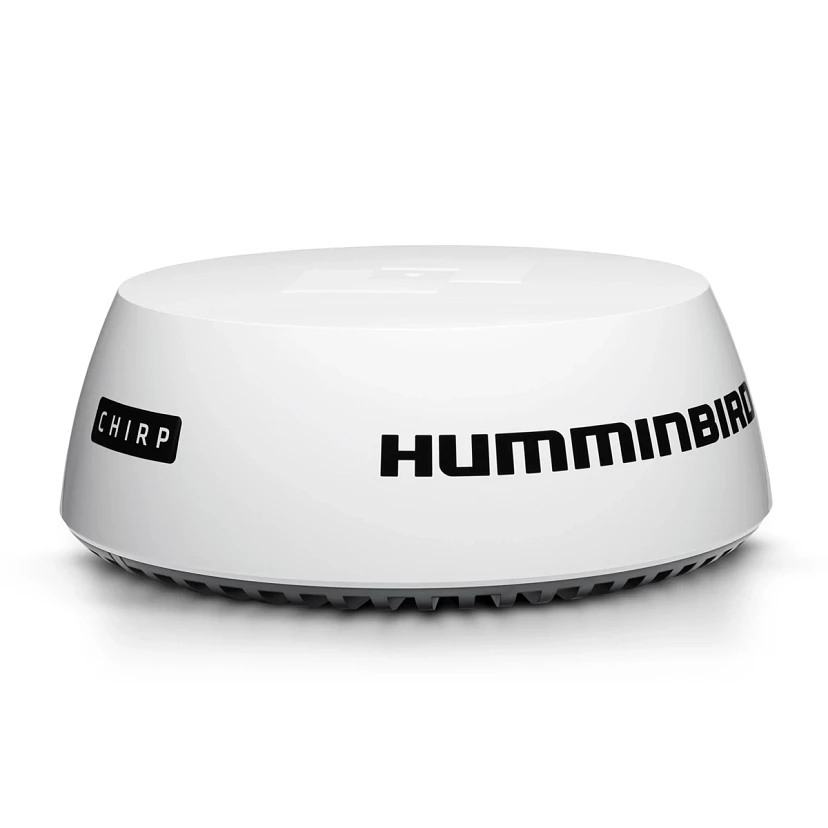

Humminbird CHIRP Radar

>$1799.99
Model: 750013-1
Stock: < 5
California Proposition 65 Warning

WARNING: These products may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

For more information visit: www.P65Warnings.ca.gov

The HB 2124 is our Humminbird CHIRP Radar that features CHIRP pulse compression, setting a new standard for compact solid-state radar. It delivers superior radar imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify floating obstacles and structures for clues to where gamefish are located. In addition, track weather, hazards and other vessels with amazing definition for navigational safety.

  • Compatible with: All APEX Series, All SOLIX Series, all HELIX 15 Series, all HELIX 12 Series, all HELIX 10 Series, all HELIX 9 Series, all HELIX 8 Series, select networking HELIX 7 Series models (HELIX 7 G4N, G3N, G2N), all ONIX Series, all ION Series
  • Data Cable Length: 32.8'
  • Antenna Dimension - 21" Enclosed Dome; Antenna Type - Patch Array; Peak Power Output - 20 Watts, Transmit Frequency - 9354 to 9446 MHz
  • Beam width (nominal) - 4.9° Horizontal and 20° Vertical; Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
  • Networking - Ethernet; Maximum Range Scale - from 1/16 to 24 nautical miles; Power Consumption - Transmit mode - 17 Watts; Standby Mode - 7 Watts; Sleep Mode - 2 Watts
  • Duplexer - Circulator; Pulse Widths @ 3 dB - 40 ns to 14.7µs; CHIRP Lengths - 400 ns to 20µs; CHIRP Bandwidth - Up to 32 MHz
  • IF Bandwidth - 26 MHz; Noise - Less than 4 dB; Polarization - Horizontal
  • Waterproofing - IPX6
  • Weight - 12.3 lbs (5.6 kg)

1 Model Available

Model Stock Price Qty
750013-1 Low Stock: <5 $1799.99
